Multi-span membrane/polycarbonate/PC board/tunnel/agricultural greenhouse with shading system

Product Description1. We can produce multi-span film greenhouse & glass greenhouse & tunnel greenhouse.2. The surface is covered with tempered glass & polycarbonate sheet & plastic film, which has good aging resistance and can well block the impact of sand and stone.3. The greenhouse structure is simple

Featured Products

Product Description

Multi-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading System
1. We can produce multi-span film greenhouse & glass greenhouse & tunnel greenhouse.

2. The surface is covered with tempered glass & polycarbonate sheet & plastic film, which has good aging resistance and can well block the impact of sand and stone.

3. The greenhouse structure is simple, easy to install and save labor.

Detailed Photos

Its main structure is hot-galvanized pipes connected by galvanized bolts, which made it has a good performance in corrosion proof.

Multi-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading System

There are many ways to connect the embedded part and the column: welding & screw connection. Buyers are free to choose.

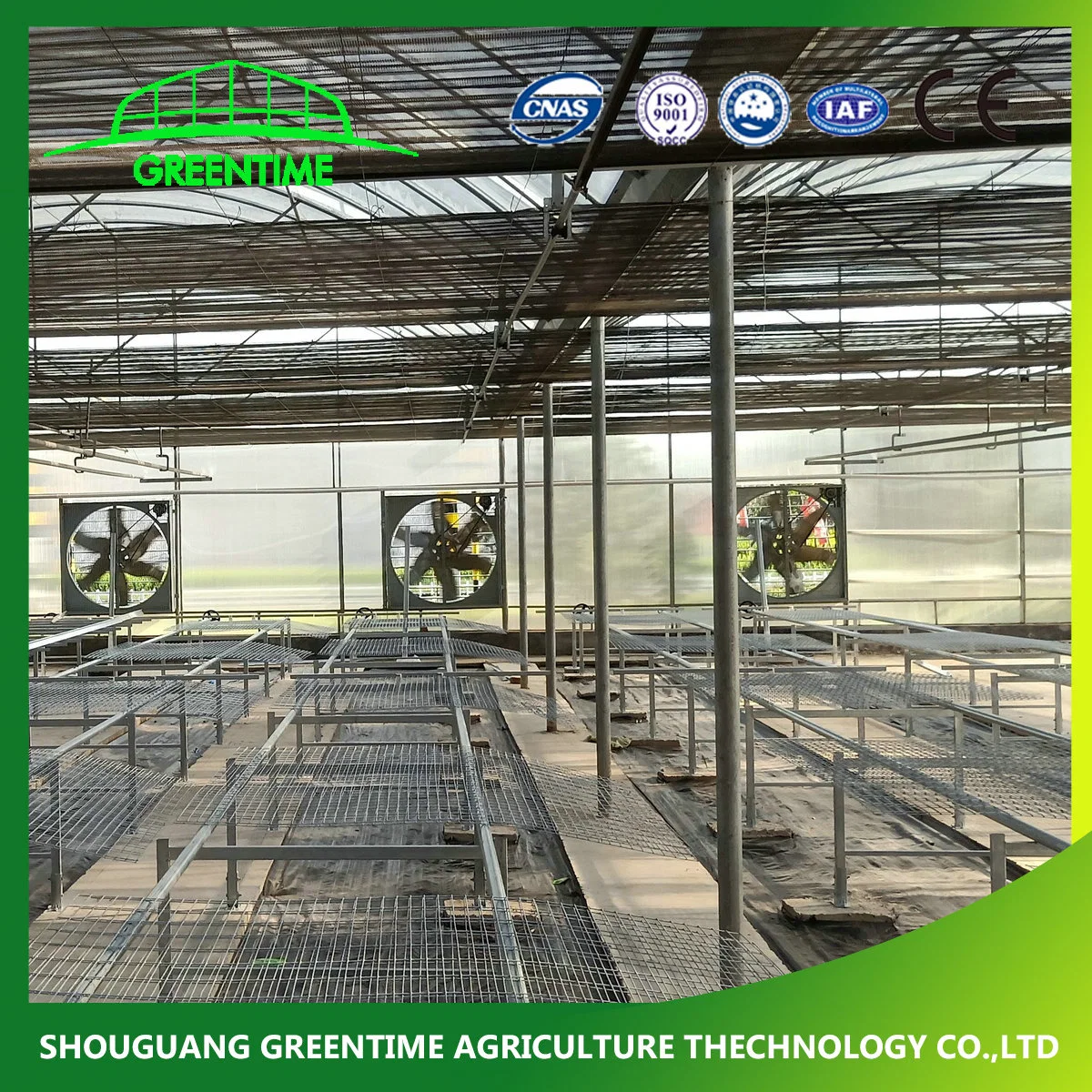

According to the requirements, it can be configurated with internal & external shading system, the seeding bad, ventilation system, cooling system, etc.
Multi-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading SystemShade nets are available in different colors(black & greenhouse & aluminum white) and shading rates(35%~99%) for buyers to choose freely.

Multi-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading SystemThe covering material is tempered glass & polycarbonate sheet & plastic film, they have different color and different thickness.

Hollowed polycarbonate sheet thickness: 6.0mm~10.0mm;

Waved polycarbonate sheet thickness: 0.6mm~1.2mm;

Plastic film thickness: 75 micron ~200 micron.


Multi-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading SystemCooling pad: galvanized & aluminum alloy frame, 10cm/15cm/20cm thickness, 1.0m/1.5m/2.0m/3.0m height, paper & plastic material.
Fan size: 800*800mm & 900*900mm & 1000*1000mm & 1100*1100mm & 1220*1220mm & 1380*1380mm & 1530*1530mm.
No.ItemBlade Diameter
(mm)
Revolution Speed Of The Blade
(r/min)
Blast Capacity
(m³/h)
Maximum Section Pressure
(Pa)
Noise Intensity
(dB)
Input Power
(W)
Nominal Voltage
(V)
Length x Width x Thickness
(mm)
1TH--800B7106502000060≤70370380800 x 800 x 400
2TH--900B7506302200065≤70550380900 x 900 x 400
3TH--1000B9006102500070≤707503801000 x 1000 x 400
4TH--1100B10006003250070≤707503801100 x 1100 x 400
5TH--1200B11004603800073≤7011003801220 x 1220 x 400
6TH--1380B12504404400056≤7011003801380 x 1380 x 400
7TH--1530B14004405580060≤7015003801530 x 1530 x 400
Related Accessories

We retail and wholesale all kinds of greenhouse installation accessories, welcome to consult:
Multi-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading System
Multi-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading SystemMulti-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading SystemMulti-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading System

Packaging & Shipping
Multi-Span Film/Polycarbonate/PC Sheet/Tunnel/Agricultural Greenhouse with Shading System
1. Using export standard containers for loading.
2. The accessories are individually packed in bags.
3. Take photos and videos during loading and show them to buyers.
4. Professional and careful loading process to ensure the integrity of the product.
